Command-line Export

Using Command-Line Export

Command-Line Export in DPL Studio provides a convenient way to export data directly through the command prompt.

Usage Options:Export Data export.exe <Digital Process Logic Pack Path> <Export Template Title>

Append Status Messages to a Log File export.exe <Digital Process Logic Pack Path> <Export Template Title> -o <Log File>

List Template Titles in the Workspace export.exe <Digital Process Logic Pack Path> -l

Run All Template Titles in the Workspace export.exe <Digital Process Logic Pack Path> -r

Run Export with Parameters.Parameters can be dynamically passed using the -p option. By default, parameters are read from the XML file.

export.exe -d <XML File Path> [-pParameterName=Value]

Example XML File for Export Template Parameters <root>

<workspace path="C:\Temp\UpdateData.slfusion" />

<template name="UpdateData">

<mapping sourceQuery="UpdateData" destinationTable="temp">

<queryParameters>

<queryParameter name="MyParam1" value="40" />

<queryParameter name="MyParam2" value="50" />

</queryParameters>

</mapping>

</template>

</root>

Run Integration Function export.exe <Digital Process Logic Pack Path> -if <Integration Function Name>

List Integration Functions export.exe <Digital Process Logic Pack Path> -il

Run Integration Functions with Parameters.Parameters can be dynamically passed using the -p option. By default, parameters are read from the XML file.

export.exe -id <XML File Path> [-pParameterName=Value]

Example XML File for Integration Function Parameters <root>

<workspace path="C:\Temp\UpdateData.slfusion" />

<integrationFunctions>

<integrationFunction name="UpdateData">

<queryParameters>

<queryParameter name="MyIFParam" value="30" isExpr="false" />

<queryParameter name="MyIFParam2" value="500" isExpr="false" />

<queryParameter name="MyIFDateParam" value="10/10/04" isExpr="false" />

</queryParameters>

</integrationFunction>

</integrationFunctions>

</root>

Run Action export.exe <Digital Process Logic Pack Path> -ra <Action Name>

List All Actions export.exe <Digital Process Logic Pack Path> -al

Steps to Use Command-Line Export

  1. Open the Command Prompt.

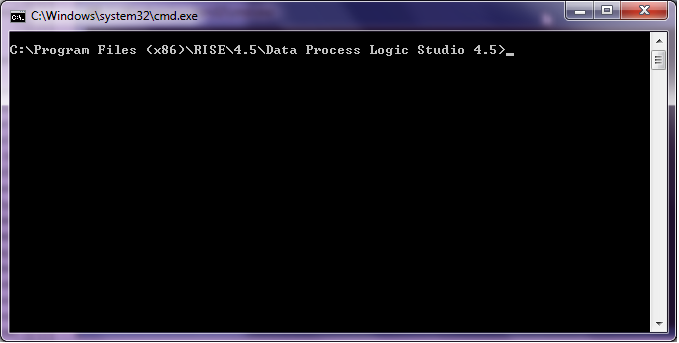

  2. Navigate to the Bin folder in the installed directory of DPL Studio.

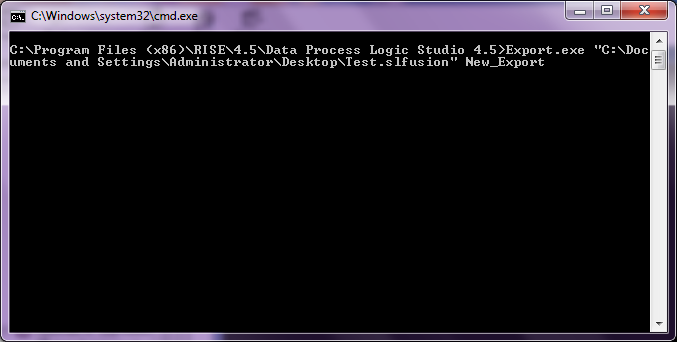

  1. Enter the required command based on the operation you want to perform and press Enter. Example: export.exe "C:\Temp\textTest.slfusion" ExportToExcel

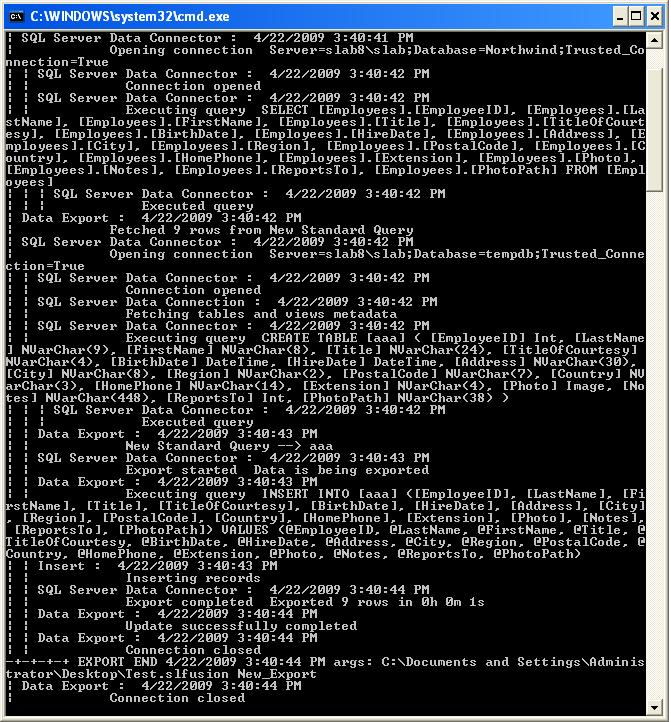

  1. The export status messages will be displayed in the Command Prompt window.
