SAP Business One Connector

Setting Up SAP Business One - Business Object Destination Connection​

Setting up an SAP Business One – Business Object destination connection in DPL Studio requires specifying the server details, company information, and authentication credentials.

Steps to Set Up an SAP Business One – Business Object Connector​

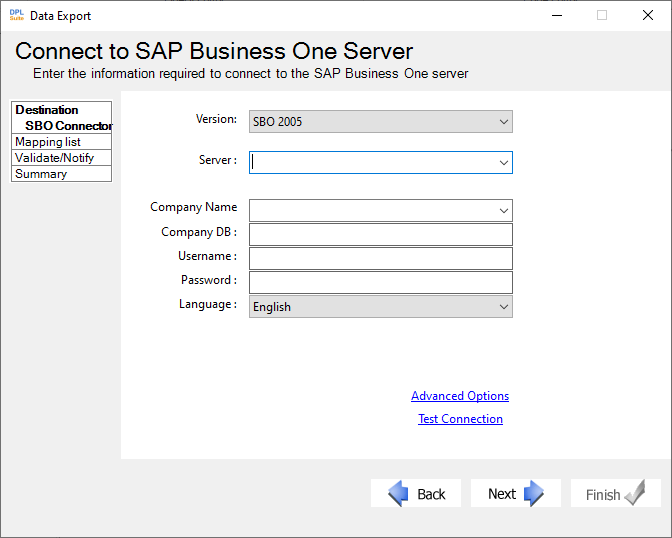

  1. In the Set Destination Connection dialog of the Data Export Wizard, select SAP Business One – Business Object Connector.

  2. Enter the required connection details, including:

  • Version
  • Server Name
  • Company Name
  • Company Database
  • UserName
  • Password

  1. Select the required Language.

  2. Click Advanced Option to open the advanced settings dialog box.

  3. In the advanced settings:

  • Select the appropriate Server Type based on the SAP Business One backend.
  • Choose either: Windows Authentication, or SQL Authentication mode.
  • Click Ok

  1. Click Test Connection to verify the connection to the specified SAP Business One data source. (If the connection fails, verify that all settings are correct. Incorrect credentials, spelling errors, or case sensitivity may cause connection failures.)

  2. Click Next to select the required Business Objects from the list.

  3. Click Next to proceed to the next step in the wizard and configure the table mappings between the source and destination files.
